100% woven polyester connector used in higher temperature environments up to 130°C / 266°F. Atex Compliant: IBExU tested. Can be used in all explosion hazardous areas.
Product Options
- Rings
- Tapered
- Tool Release
Product Description

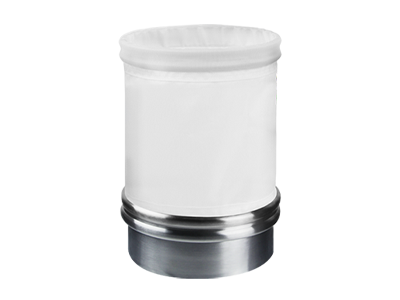

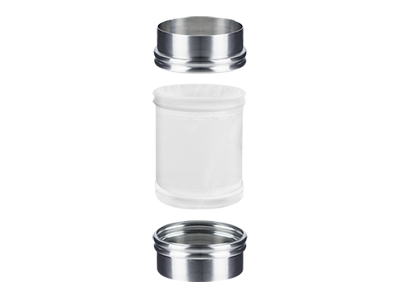

LM4 is a 100% woven polyester connector used in higher temperature environments.
Application
- Used for higher temperature environments. (up to 130°C / 266°F)
Key Features
Capable of running at high temperatures
Can be used with all types of movement
Conditions and Compliance
LM4 Connector
Physical properties
Material/Fibre
100% Polyester
Colour
White
Construction/ Finish
Multi-filament plain weave, calendered
Weight
393 g/m2 / 11.6oz/yd2
Breathable
Yes
Average Tensile Strength (kg)
Warp 193 Weft 230 (Test Standard: ASTM 5034)
Minimum Tensile Strength (kgf/25mm) (measured as a force over a 25mm wide Ravel Strip)
Fabric
Warp 293)
Weft 230)
(measured as a force over a 25mm wide Ravel Strip)
Dust tight?
No
Maximum Number of Rings (on a single connector)
10
Operating Conditions
Max. Operating Temp
130°C / 266°F
Operating Temp Range
- 55 to 130°C / - 48 to 266°F
Surge Temp
150°C / 302°F
Low Temp / Flexibility
Good
Surface Resistivity (0hms)*
109 (Tested to ASTMD-257)
Air Permeability
0.4 (cm3/cm2/sec at 125Pa) / 0.8 (ft3/ft2/min at 0.5 inch wg) NB: 125Pa = 0.5 inch wg
Vibration
Yes
Oscillation
Yes
Compression
Yes
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.2800
3A Certified
The BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
EU Approved
(EC) 1935/2004, 2023/2006
& 10/2011
Atex Certified
IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.
Dimensions
Available Diameters
- Ø100mm,
- Ø125mm
- Ø150mm - 1,650mm (in 50mm increments).
(max. diameter with SS rings is 500mm, Tool Release is 650mm plastic rings is 1,000mm)
Applicable Connector Lengths
- 80mm (3"),
- 100mm (4")to 1,500mm (4ft 11") in 50mm (2") increments.
Options
Available with SS Rings?
(min. length for all is 150mm)
Yes - to Ø500mm = CL ≤ 1,500mm
Available with Plastic Rings?
(min. length for all is 150mm)
Yes - to Ø500mm = CL ≤ 1,500mm, Ø550mm - 1,000mm = CL ≤ 500mm
(Max Operating Temp: 110°C / 230°F)
(Max Operating Temp: 110°C / 230°F)
Available as Tool Release?
Yes to Ø650mm
Available as Tapered?
Yes
Available as a one ended Connnector?
Yes
Quick Access Port Option?
No
Getting Started with BFM® fittings
We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.
Rings
LM4 is available with stainless steel or plastic support rings to help keep the walls of the connector open.
Ideal for vacuum applications or longer lengths.
Tapered
LM4 is available as a tapered version where different entry and exit diameters are required.
Also often used as a simple hopper solution.
Tool Release
For added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.
PVC Pipework
LM4 connectors used in PVC pipe production.
LM4 with Kevlar Cover in Coffee Production
Breathable LM4 connector with a Kevlar Cover connecting an air-heater for drying coffee with hot air, Switzerland.
Infant Formula to Mixer
Multiple LM4 connectors feeding infant formula to mixers.
LM4 Under Large Silo
LM4 beneath a shut-off valve from a sailor to a packing hopper.
Beneath Large Sifter
Multiple LM4 connectors beneath a sifter.
LM4 Under Rotary Valve
LM4 beneath a rotary valve outlet.
