Flexible Connectors

Corner Connector
060ES

A uniquely shaped connector made of pressure-resistant, ether-based thermoplastic polyurethane alloy with an internal polyester scrim.

Features a 110° bend to aid the drainage of CIP fluid from your process equipment.

Product Description

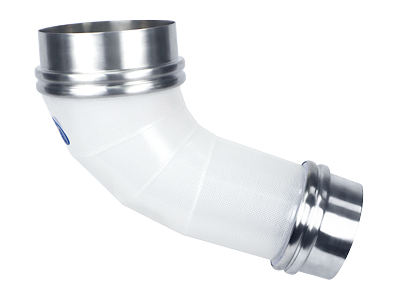

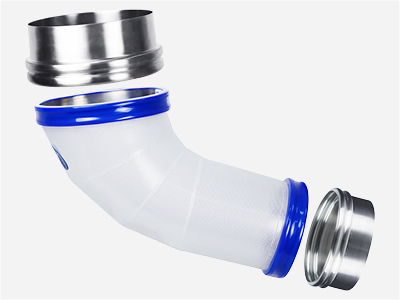

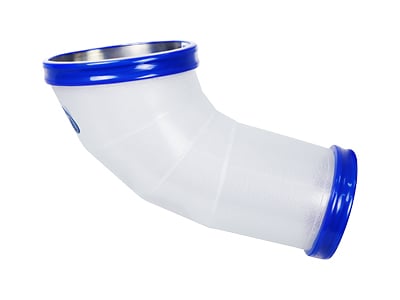

This Corner Connector is made from 060ES, a clear ether-based thermoplastic polyurethane alloy with an internal polyester scrim, a tapered infeed end, 110º angled bend and straight drain output end.

It is designed to redirect the clean-in-place (CIP) wash fluid flowing through your process ensuring that your equipment stays dry and your product is free from chemicals used to clean your process machinery.

Application

CIP (Clean-In-Place) wash processes to replace traditional steel tun-dish and swiveling pipework.
Made from pressure-resistant Seeflex 060ES so ideal for high head-pressure CIP applications.
Ideal for under compact machinery (i.e. sifter/sieve) where product needs to be redirected into other equipment where there is limited space.

Key Features

Can be used in applications where product needs to be transported around a bend

Replaces steel tun-dish and swiveling pipework

Ideal for high head pressure CIP applications

Conditions and Compliance

View Specifications below for full details and restrictions.

Seeflex 060ES
Corner Connector
Images

Specifications

Specifications Sheet

Physical properties

Material/Fibre

Seeflex - Ether-based thermoplastic polyurethane alloy with internally bonded polyester scrim

Colour

Semi-transparent

Wall Thickness (+/- 10%)

1.3mm (3/64 inch)

Weight

1,220g/m2 / 43oz/yd2

Breathable

Hardness (Shore A)

Tensile Strength (MPa)

Elongation (100%)

12.5

Elongation (300%)

Ultimate Elongation

692

Tear Strength – Die C (N)

131

100% Modulus (MPa)

12.5

Dust tight?

Yes

Operating Conditions

Max. Operating Temp

120ºC / 248ºF

Operating Temp Range

-25 to 120˚C / -13 to 248˚F

Surge Temp

140°C/ 284°F

Low Temp / Flexibility

Good

Air Permeability

Max. Operating Pressure

1.7 bar / 24 PSI (for temp. to 90˚C / 195˚F measured on a static Ø200mm x 200mm long connector).
We recommend using the shortest possible connector for applications where increased pressure and/or high temperature is expected.

Vibration

Yes

Oscillation

Compression

Certification and Compliance

FDA and USDA

FDA 21 CFR 177.1680 & 177.2600 and USDA

3A Certified

Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.

EU Approved

(EC) 1935/2004, 2023–2006 & 10/2011

Atex Certified

Approved for all dust explosion hazardous areas. Some restrictions apply.

Dimensions

Available Diameters

Diameter 1 (wide (infeed) end) Ø125mm (5") to Ø650mm (26") in 50mm (2") increments.
Diameter 2 - narrow (outlet) end: Ø100mm (4") to Ø600mm (24") in 50mm (2") increments.

(max. diameter with SS rings is 500mm, Tool Release is 650mm at the wide end and 600mm at the narrow end, plastic rings is 1,000mm)

Applicable Connector Lengths

Height 1 - wide (infeed) end*: 200mm (8") to 900mm (35”) in 50mm (2") increments.
Length 1 - narrow (outlet) end: 100mm (4") to 650mm (26") in 50mm (2") increments.
(min. length for all with rings is 150mm)

Options

Available with SS Rings? (min. length for all is 150mm)

Available with Plastic Rings? (min. length for all is 150mm)

Available as Tool Release?

Yes to ≤ Ø650mm - wide end, ≤ Ø600mm narrow end

Available as Tapered?

Yes

Available as a one ended Connnector?

Yes

Quick Access Port Option?

MSDS - Seeflex 060ES (GHS)

MSDS - Seeflex 060ES (EU)

Corner Connector Calculator

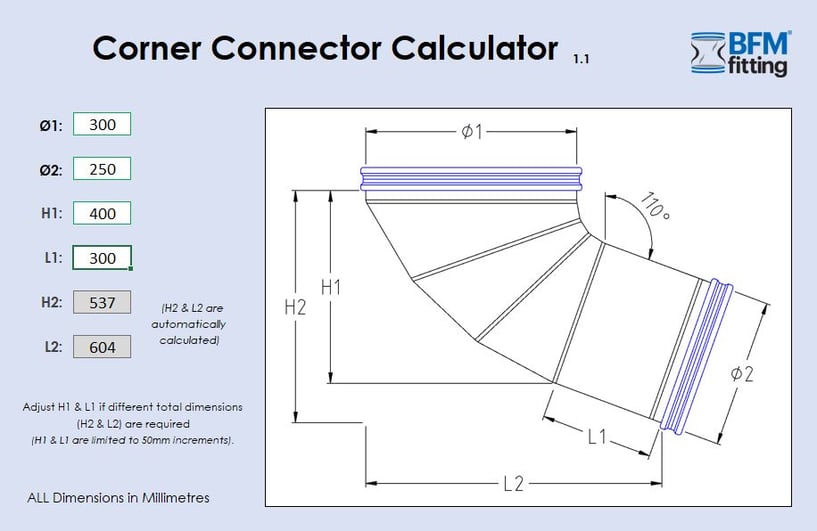

To check the minimum allowable inlet height, and to calculate the total dimensions (from cuff to cuff) of available corner connector sizes, you can download the Corner Connector Calculator.

Corner Connector Calculator

Getting Started with BFM® fittings

We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.

Find Your Local Distributor

Product Options

Tool Release

Tool Release

For added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.
