Kevlar Cover

A flame retardant Kevlar Cover that fits over existing connectors. It is typically used in over pressure and potentially explosive applications to reduce the risk of fire.

Product Description

The flame retardant Kevlar Cover fits over existing connectors and is typically used in over pressure and potentially explosive applications to reduce the risk of fire.

Application

Used in over pressure and potentially explosive applications.
Designed to fit over existing connectors.
Very easy to install and remove, no tools required.

Key Features

Fits over our entire connector range

No tools required when installing or removing cover

Conditions and Compliance

View Specifications below for full details and restrictions.

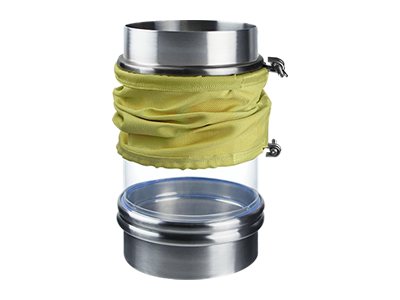

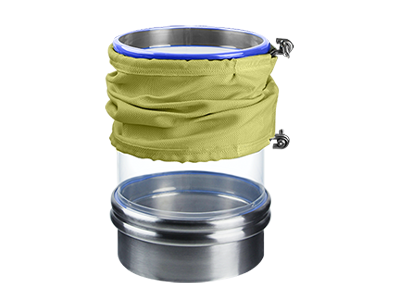

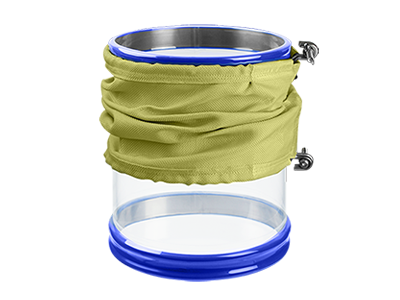

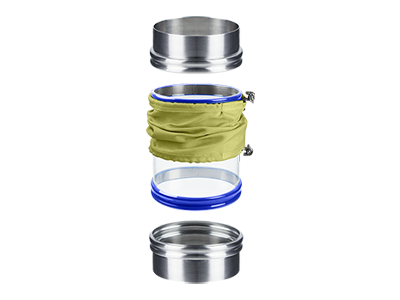

Kevlar Cover
Images

Specifications

Specifications Sheet

Physical properties

Material/Fibre

Kevlar (Aramid) and the wire used for the holders is 6mm 304 stainless steel

Colour

Yellow

Construction/ Finish

Multi-filament plain weave, Scoured and heat set

Weight

447 g/m² / 13.2 oz/yd²

Breathable

Yes

Minimum Tensile Strength (kgf/25mm) (measured as a force over a 25mm wide Ravel Strip)

Fabric Warp 700 Filling 704 (±58 kgf) (Test Standard: ASTM 5035). (measured as a force over a 25mm wide Ravel Strip)

Dust tight?

Operating Conditions

Max. Operating Temp

260°C / 500°F Continuous

Surge Temp

300°C / 572°F (NB: Limited to max. operating temp of inner connector)

Surface Resistivity (0hms)*

10¹⁰

Vibration

Yes

Oscillation

Compression

Yes

Certification and Compliance

FDA and USDA

FDA 21 CFR 177.1632

3A Certified

No, however the connector used with the cover may be 3A certified.

Atex Certified

IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.

Dimensions

Available Diameters

Ø100mm,
Ø125mm,
Ø150mm - Ø1,650mm (in 50mm increments)

Applicable Connector Lengths

80mm (3"),
100mm (4") to 1,000mm (3ft 3") in 50mm (2") increments

Options

Available as Tapered?

Yes

Getting Started with BFM® fittings

We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.

Find Your Local Distributor

Kevlar Cover Applications

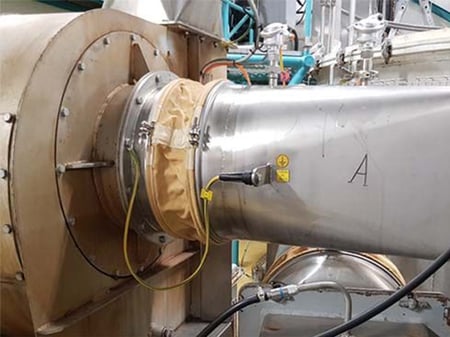

LM4 with Kevlar Cover in Coffee Production

Breathable LM4 connector with a Kevlar Cover connecting an air-heater for drying coffee with hot air, Switzerland.

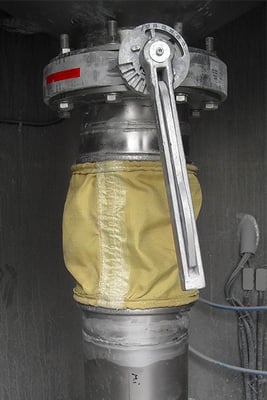

Limestone Processing

Seeflex 040E with Kevlar Cover used at base of limestone silo - under constant pressure
