Very light weight and flexible, ideal for applications that require compression.
A Flexi-Connector with slightly thinner Seeflex walls and a more
flexible coil.
Flexible Connectors
Flexi-Light
Connector
Product Description

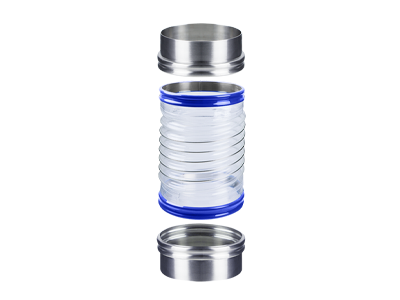

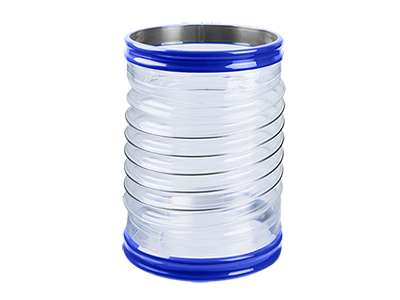

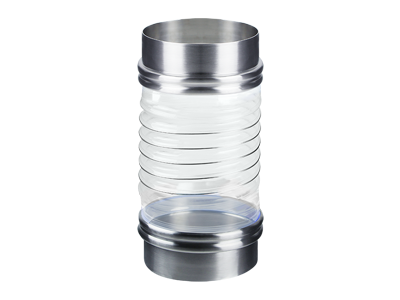

The Flexi-Light Connector is made from an ether-based polyurethane with a lighter 316 stainless steel wire coil than our standard Flexi, making it ideal for applications with vertical and low-frequency /occasional horizontal movement.
The Seeflex walls are also slightly thinner and the coil is much more flexible making it perfect for weigh-scale type applications, as it provides less resistance than our standard Flexi.
Application
- Used for weigh-scale applications
- Ideal for bag feeders and for applications with irregular movement
Key Features
Very lightweight and flexible
CIP Safe
Ideal for applications with vertical movement
3A, USDA, EC and ATEX compliant
Conditions and Compliance
Flexi-Light Connector
Images
Physical properties
Material/Fibre
Seeflex -Ether-based thermoplastic polyurethane
Colour
Transparent
Construction/ Finish
Gloss/Gloss
Wall Thickness (+/- 10%)
0.4mm/ 1/64 inch
Breathable
No
Hardness (Shore A)
90
Dust tight?
Yes
Operating Conditions
Max. Operating Temp
85ºC / 185ºF
Operating Temp Range
- 20 to 85°C / - 4 to 185°F
Surge Temp
105°C / 221°F
Low Temp / Flexibility
Good
Surface Resistivity (0hms)*
1010 (Tested to ASTMD-257)
Air Permeability
0
Vibration
Yes
Oscillation
Yes
Compression
Yes
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1680, 175.105 (adhesives) & 177.2600 and USDA
3A Certified
Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
EU Approved
(EC) 1935/2004, 2023–2006 &
10/2011
Atex Certified
IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.
Dimensions
Available Diameters
Ø100mm (4") to Ø300mm (12") in 50mm (2") increments
Applicable Connector Lengths
- 200mm (8") up to 6,000mm (19ft 8") in 50mm (2") increments
Wire Coil Position
50mm / 2 inches from cuff
Wire Coil Diameter
1.6mm / 1/16 inch
Compression Ratio of Coil Section (Approx.)
4 to 1
Options
Available with SS Rings?
(min. length for all is 150mm)
No
Available with Plastic Rings?
(min. length for all is 150mm)
No
Available as Tool Release?
Yes
Available as Tapered?
Yes as extension

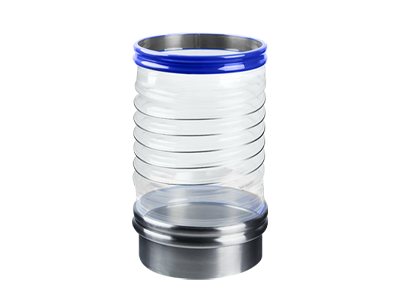

Available as a one ended Connnector?
Yes
Quick Access Port Option?
No
Hear from a BFM® fitting expert
Listen to our Technical Lead, Matthew Bailey, speak in-depth about the features and benefits of our Flexi-Light Connector.
Product Option
Tool Release (TR)
For added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.
Getting Started with BFM® fittings
We have Authorized Distributors who will help work through what you want to achieve and how BFM® fitting can improve your plant.
Tips and Guides
For some useful technical tips and information get you started with selecting the BFM® fitting system.
Installation Process
Helpful information for the entire installation process, from measuring up for the initial welding of your spigots to snap-fitting your connectors.
If you would like to discuss your unique application, please contact us and we'll help find a solution for you.
