Blanking caps can be used to prevent contamination during cleaning or change over, as well as being used as a viewing port.
Product Options
- Tool Release
- Quick Access Port
Blanking Caps & Bins

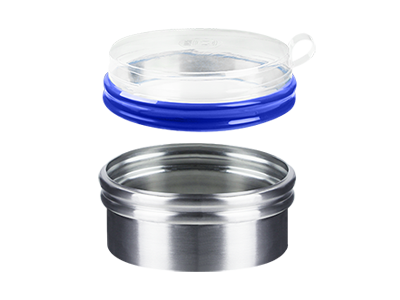

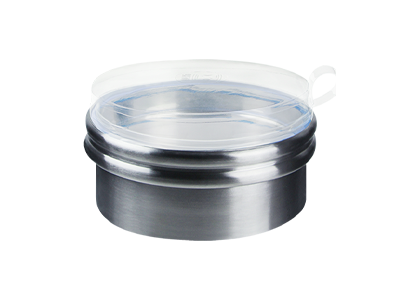

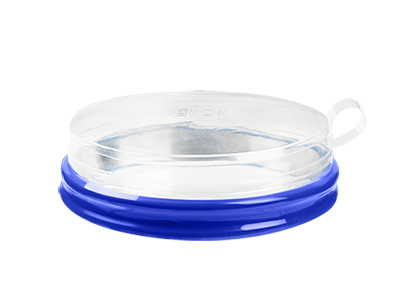

Blanking Cap
Product Description
BFM® blanking caps can be used to prevent contamination during clean down or change-over. Made with our strong and transparent Seeflex material, meaning they are ideal for use as sight-glasses/inspection ports. They also protect products and prevent dust emission into the factory.
Application
- Useful in closed vessels where you require product flow visibility.
- Can be used as a 'blind plug' to close off parts of your equipment to prevent dust emission into the factory.
Key Features
Can be used to seal off machinery to prevent dust emission into the factory
Allows for visibility of product flow in closed vessels
Conditions and Compliance
Blanking Cap
Images
Physical properties
Material/Fibre
Seeflex -Ether-based thermoplastic polyurethane
Colour
Transparent
Construction/ Finish
Gloss/Gloss
Wall Thickness (+/- 10%)
0.9 mm / 1/32 inch
Breathable
No
Hardness (Shore A)
90
Tensile Strength (MPa)
40
Dust tight?
Yes
Operating Conditions
Max. Operating Temp
110ºC / 230ºF
Operating Temp Range
- 25 to 110 ̊C / - 13 to 230 ̊F
Surge Temp
120°C/ 248°F
Vibration
Yes
Oscillation
Yes
Compression
No
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1680 & 177.2600 and USDA
3A Certified
Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting.
EU Approved
(EC) 1935/2004, 2023–2006 & 10/2011
Atex Certified
IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply.
Dimensions
Available Diameters
- Ø100mm,
- Ø125mm then
- Ø150mm - 1,650mm (in 50mm increments).
(Max. for Tool Release is 650mm)
Applicable Connector Lengths
- 30mm (1 3/16") only
If you are after a longer length, look at the Blanking Bin / Sock.
Options
Available as Tool Release?
Yes to Ø650mm
Quick Access Port Option?
Yes from Ø200mm
Hear from a BFM® fitting expert
Listen to our Technical Lead, Matthew Bailey, speak in-depth about the features and benefits of our Blanking Cap & Blanking Bin.
Tool Release
For added security, this option has a significantly firmer snap-band that makes it virtually impossible to remove by hand and requires a specially shaped tool.
Quick Access Port
A 56mm polyurethane thread 'port hole' with a stainless steel screw-in plug that is added to the wall of the connector.
Allows fast, easy access to product flow for testing, sampling or adding small-volume ingredients.
The Quick Access Port is not currently 3A approved so the connector will no longer have 3A approval.
