Product Description

Title Line

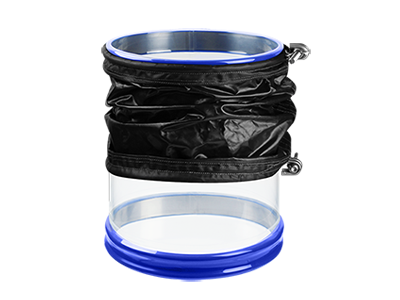

The Black Out Cover is used in light-sensitive applications to cut out light.  Made from a polypropylene fibre that meets FDA requirements for textiles used in the processing of foods.

Application
  • The cover cuts out all light and is for use in light sensitive areas.

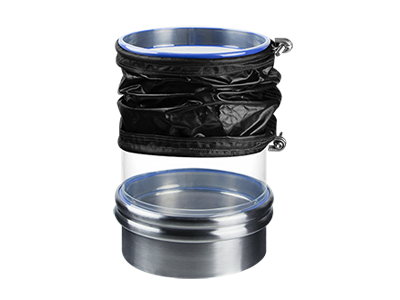

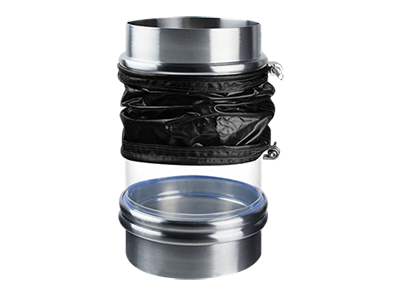

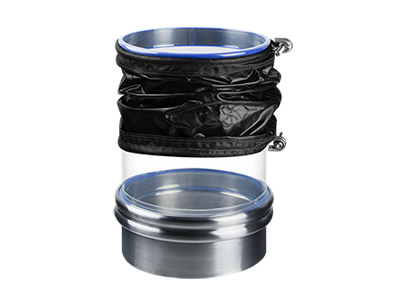

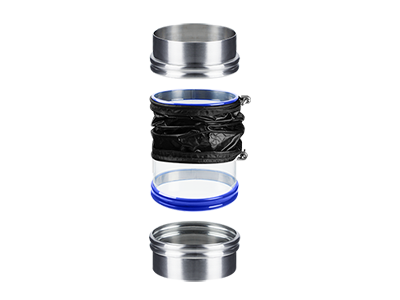

  • Designed to fit over existing BFM® connectors.

  • Easy to install and no tools are required.
Key Features
tick for web-light blue-60x60px


Fits over our entire connector range

tick for web-light blue-60x60px


Designed for light sensitive applications

Specifications

Title Line
Physical properties
Material/Fibre
Polypropylene and the wire used for the holders is 6mm 304 stainless steel
Colour
Black
Construction/ Finish
Multi-filament plain weave, calendered
Weight
207 g/m2 / 6.1 oz/yd2
Breathable
Yes
Dust tight?
No
Operating Conditions
Max. Operating Temp
95ºC / 203ºF
Operating Temp Range
-70 to 95°C / -94 to 203°F
Surge Temp
100°C / 212°F (NB: Limited to max. operating temp of inner connector)
Vibration
Yes
Oscillation
No
Compression
Yes
Certification and Compliance
FDA and USDA
FDA 21 CFR 177.1520
3A Certified
No, however the connector used with the cover may be 3A certified.
Atex Certified
No
Dimensions
Available Diameters
  • Ø100mm,
  • Ø125mm
  • Ø150mm - 650mm (in 50mm increments)
Applicable Connector Lengths
  • 80mm (3"),
  • 100mm (4") to 1,000mm (39½") in 50mm (2") increments
Options
Available as Tapered?
Yes
